The Kankakee River Bypass Channel?

There is a nice slide show found at discussing the construction of downstream steps on and a fish ladder  and bypass channel around the Glen D. Palmer Dam in Yorkville, Illinois.

Are these life safety and recreational features that could be added to the Kankakee River dam in Kankakee, Illinois?

Good Steps

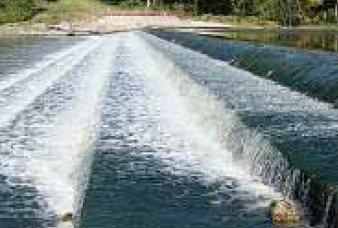

The steps were constructed to eliminate the dangerous hydraulic jump on the downstream end of the spillway.  This is the condition you often see on the Kankakee River in Kankakee, Illinois on the downstream side of the dam.  The hydraulic “jump” is where the water surface actually slopes back to the dam for a short distance.  The jump creates a large trough where floating objects float and role until escaping down stream.  The steps constructed on the dam on the Fox River in Yorkville allow river flows to cascade downstream eliminating the hydraulic jump or large trough on the downstream side for normal flow conditions.

The impact of these steps are dramatic.  Drive by the Kankakee River dam in Kankakee sometime and compare the view pictured below. (I’ll add a photo later)

Jumping Fish

I will leave it to you anglers to watch the slide show to learn more details about the fish ladder design and construction.  The fish ladder is a narrow concrete channel found on the north side of the dam.  This structure allows fish to migrate upstream.  Is this something that would be a benefit to anglers in our area?

Paddling Around the Kankakee River Dam?

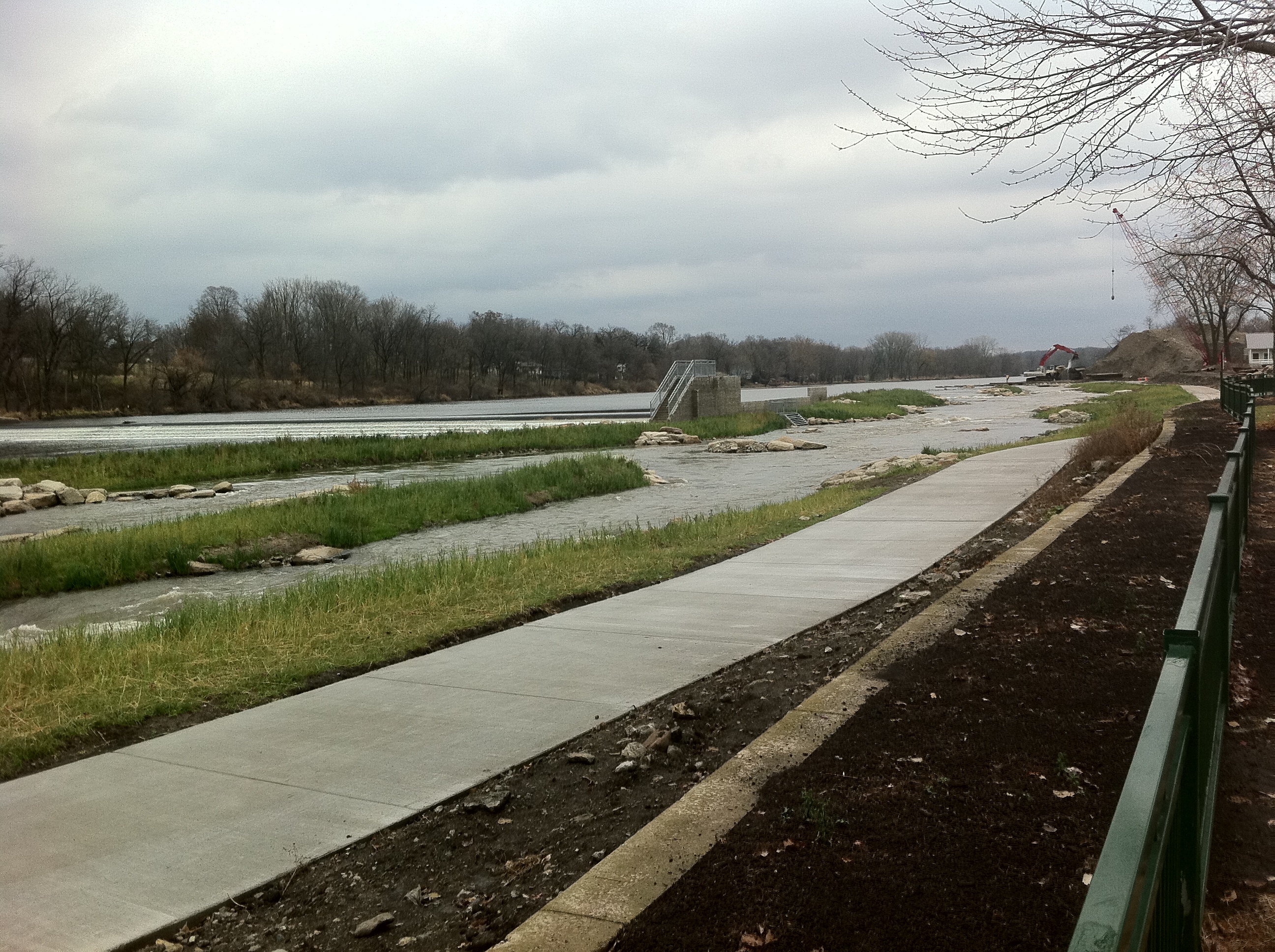

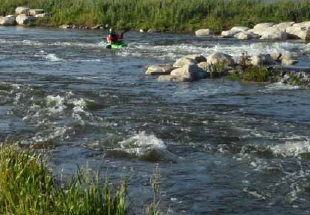

Paddlers can now run a 1/4 mile or so long “stream” with rapids and pools and drops around the dam on the Fox River in Yorkville, Illinois.  The bypass channel – stream is a huge success and is enjoyed by novice and expert paddlers.

There is a linear park following the bypass channel with benches and standing areas to watch action on the water.

How exciting would it be to see people “shooting the rapids” in downtown Kankakee on a hot summer day?  Or dropping a kayak in at Cobb Park and paddling to Bird Park?

Check out the Slide Show and let me know what you think.


About Mike Gingerich

Engineer Writer Lecturer
This entry was posted in Uncategorized. Bookmark the permalink.

2 Responses to The Kankakee River Bypass Channel?

  1. Jack Chan says:

    A bypass channel would be a much better idea than just a concrete ladder from both ecological and aesthetic perspectives. It’s an expensive proposition, however… especially in the heart of downtown Kankakee. Love your idea, nonetheless.

  2. I agree Jack. The Fox River dam in Yorkville has the concrete steps, fish ladder, and a bypass channel. If I recall correctly, the bypass channel cost $4.4M.
